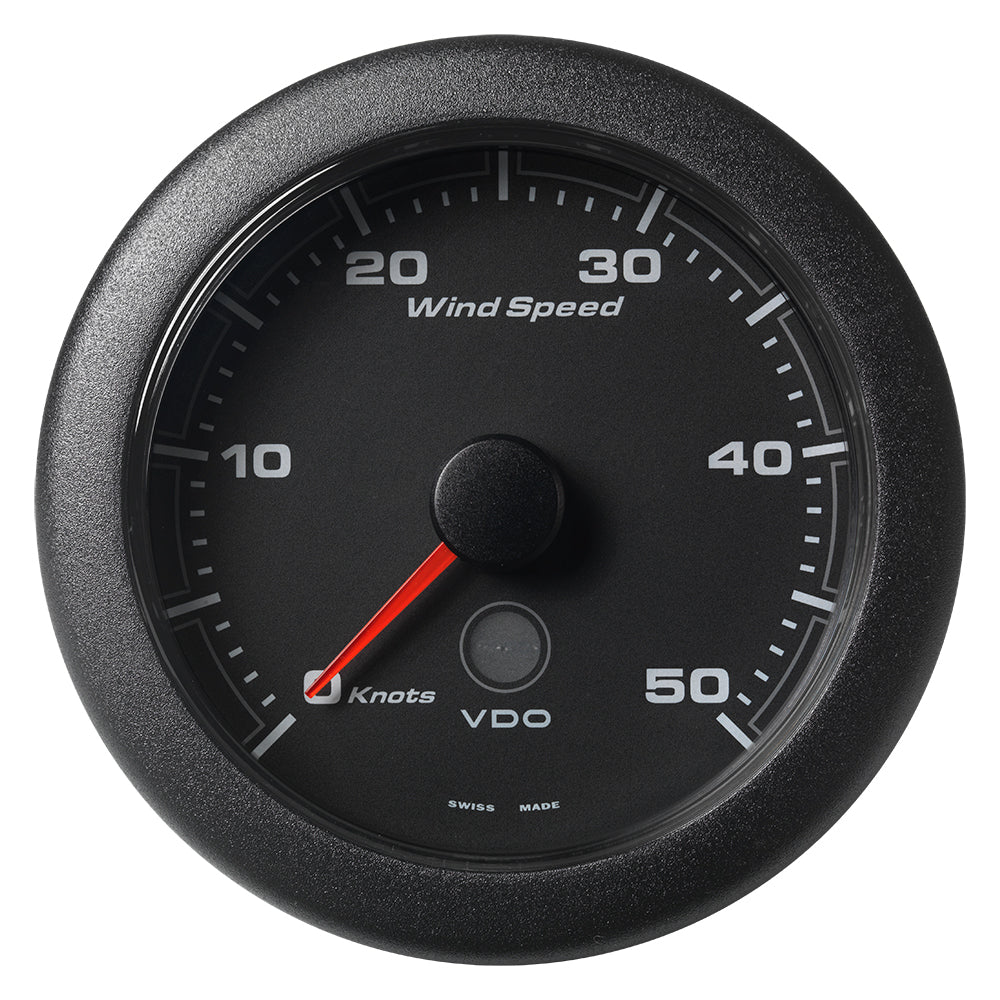

Veratron 85 MM (3-3/8") OceanLink Apparent/True Wind Speed Gauge [A2C1957420001]

Veratron 85 MM (3-3/8") OceanLink Apparent/True Wind Speed Gauge [A2C1957420001]

A2C1957420001-VER

Regular price $237.99 Sale price$214.19
/
Shipping calculated at checkout.

  • FREE SHIPPING on orders over $99. Restrictions Apply*
  • In stock, ready to ship
  • Backordered, shipping soon

85 MM (3-3/8") OceanLink Apparent/True Wind Speed Gauge

The OceanLink Series focuses on the needs of the modern sports and leisure boat markets.

 It provides a modular instrumentation concept for electronic navigation and engine monitoring with NMEA 2000®, J1939 and analog connectivity. The new product line offers a wide range of functions as well as great flexibility in installation and design.

The OceanLink™ series provides three different master instruments as centerpieces of the system: a 4.3" TFT Display, a 7" TFT touch Display and as master instruments 85 mm round gauges.

The OceanLink™ 85mm Master gauge and the TFT Displays show various available data (e.g. engine data, depth, course over ground and speed over ground), and send it to all NMEA 2000® devices and to up to 16 additional satellite instruments. All instruments come in a new and stylish design, with perfect to read modern dials.

Benefits of using OceanLink -

  • Easy and effective use.
  • Perfectly readable engine monitoring thanks to increased performance presentation.
  • The EasyLink data connection and the plug & play solution provide a flexible installation of panel, front and flush mounted instruments.
  • Decades of experience guarantee a fully reliable, modern navigation and engine monitoring system with NMEA 2000®.
  • A solid housing design completely sealed against dust and highly water resistant (IPX7 front and rear).
  • Sunlight readable touch screen IPS TFT Display.
  • Master instruments with NMEA 2000® gateway functionality forwarding data, e.g. engine data, to NMEA compatible devices.

OceanLink Specifications:

  • 1x NMEA 2000® input •
  • 1x J1939 • 1x Frequency input •
  • 2x Analog inputs
  •  1x Alarm output 500 mA
  • Reverse polarity protection
  •  Anti-fog double layer plastic lens
  • Protection rating IPX7
  • Operating temperature range -20°C to +70°C

In the Box:

  • Gauge
  • Bezel
  • Rubber Seal
  • Spinlock
  • Connection Cable
  • Installation Instructions
  • Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Box Set: No
  • Gauge Size: 3-3/8"
  • Gauge Type: Wind
  • Series: OceanLink
  • Voltage - Input Range (Volts): 12/24 V
