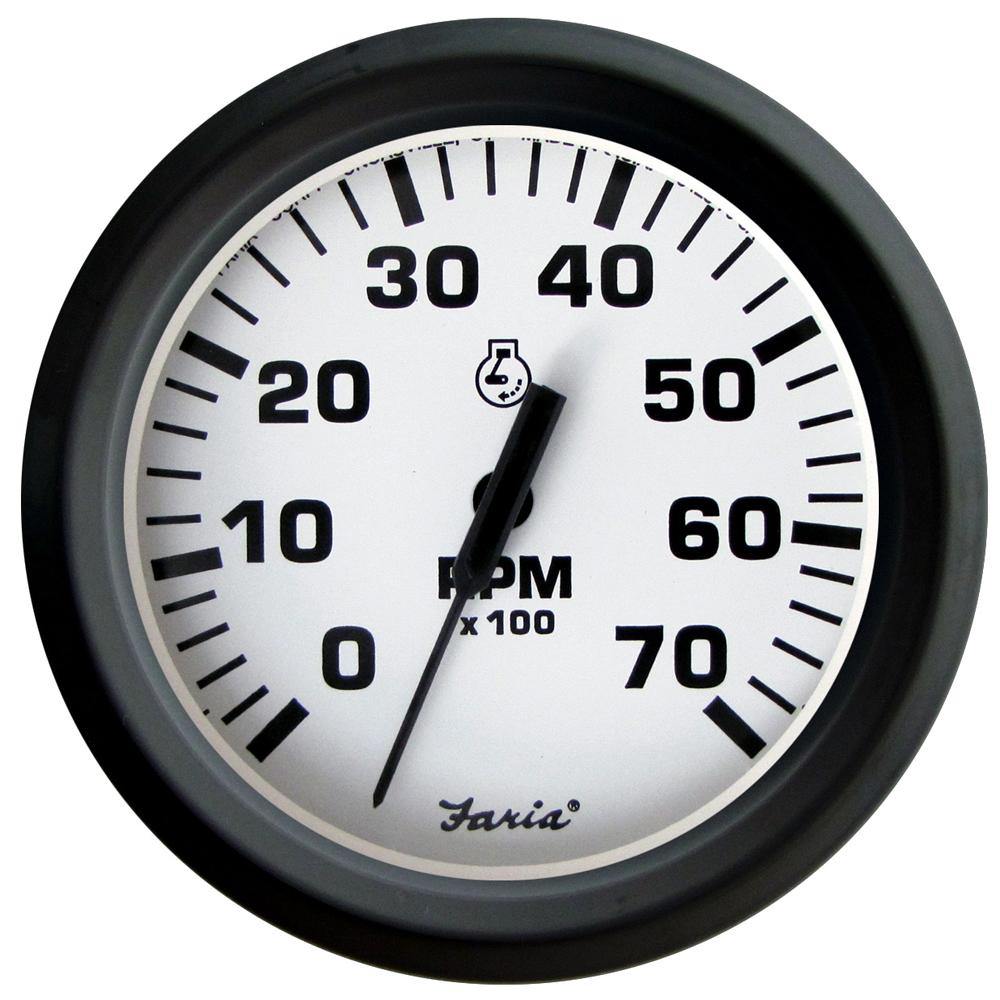

Faria Euro White 4" Tachometer 7000 RPM (Gas) (Outboards)
Euro White 4" Tachometer 7000 RPM (Gas) (Outboards)
Perimeter-lighted White dial with bold Black graphics, Black aluminum bezel, contoured White pointer and flat glass lens.
Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.
By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.
4" - Hole size: 3.375" (85mm)
- Anti-scratch glass lens
- Perimeter-lighted White dial
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N TC9003
*Sold as an Individual
**Gauge Cover not Included
- Gauge Type: Tachometer
- Series: Euro White
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 4"
- Box Set: No
- Box Dimensions: 5"H x 5"W x 6"L WT: 0.7 lbs
- UPC: 759266329058
Quick Guide (pdf)
