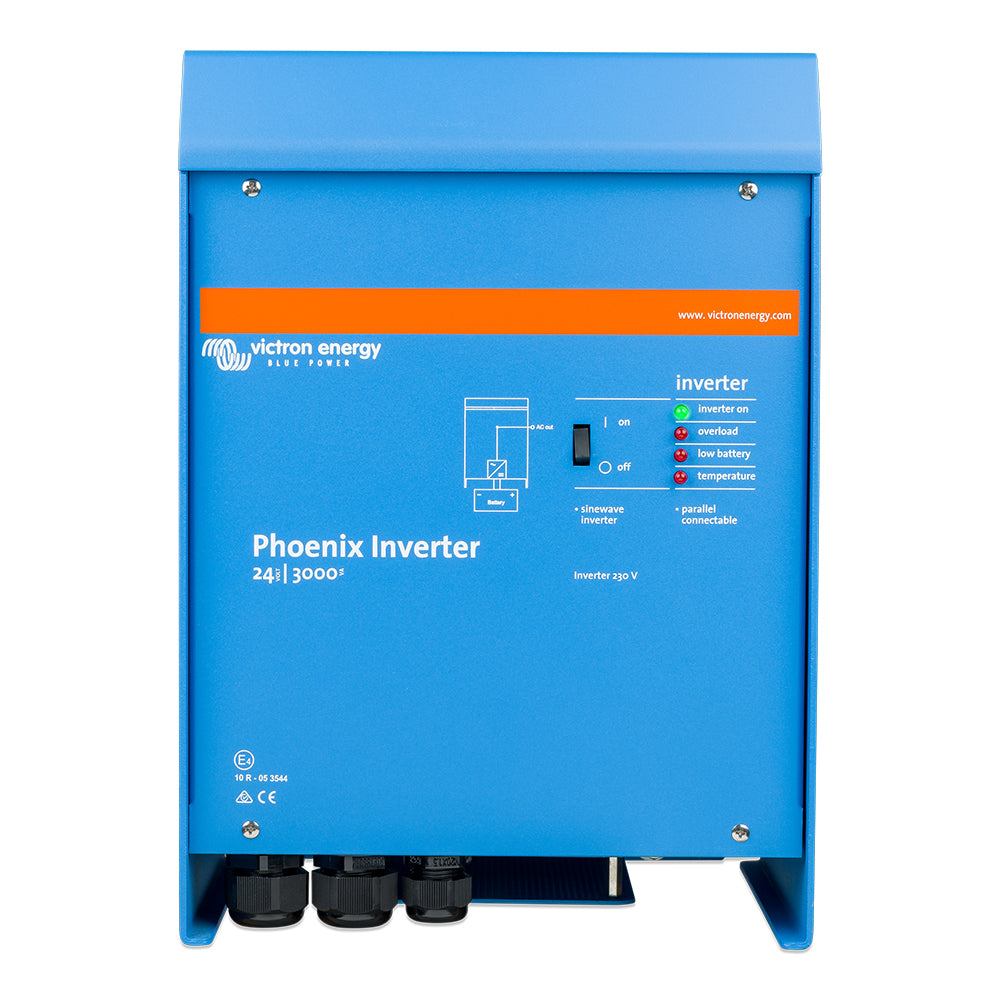

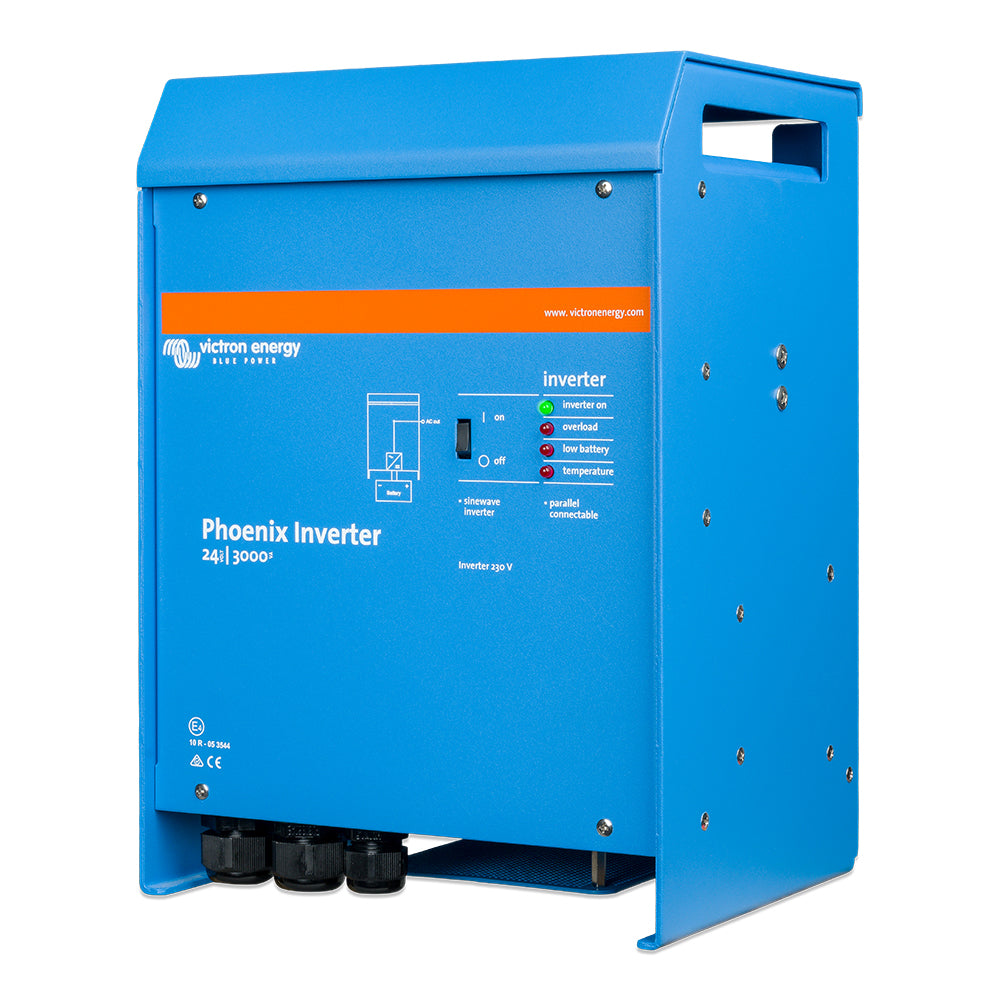

Victron Phoenix Inverter - 12VDC - 3000VA - 120VAC - 50/60Hz - VE.Bus [PIN123020100]
- FREE SHIPPING on orders over $99. Restrictions Apply*
- In stock, ready to ship
- Inventory on the way
Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product.
- Waveform: Pure Sine Wave
- Inverter Surge Rating: 6000w
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 10-17v
- GFCI: No
- DC Connection Type: Hardwire
- AC Connection Type: Hardwire
- Outlet Qty: None
- Inverter Cont. Output Wattage: 3000w
- Box Dimensions: 12"H x 14"W x 18"L WT: 47.1 lbs
- UPC: 8719076023586
Quick Guide (pdf)
